Getting Started with the Viam App

A guide to getting started with app.viam.com.

The Viam app is a tool for configuring, controlling, and managing robots from anywhere. This guide covers how to manage organizations, locations, robots, and robot parts from the Viam app.

Creating an account

If you received an invitation from an existing organization, use the email link to sign up.

If you’re signing up without an invitation link, go to app.viam.com and create an account with your Google account or an email and password of your choice.

Click the drop down in the upper right corner of the page. You should see your name, email, and a list of organizations you belong to.

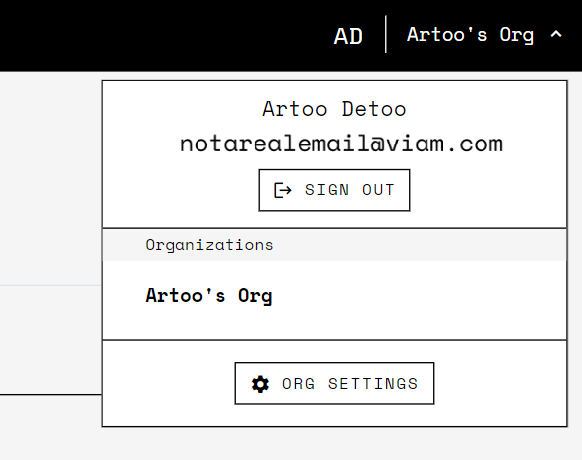

Figure: The Org drop-down.
A screenshot of the org drop down showing an example user's name, email, SIGN OUT button, list of organizations, and ORG SETTINGS button.

If you used an email invite to sign up, the organization that invited you should be listed here. You also have a personal organization for projects not associated with other organizations.

Click an organization name to navigate to its list of locations.

Creating a new organization

To create a new organization, click ORG SETTINGS and use the New Organization field in the upper left of the page.

Inviting users to your organization

To invite another user to your organization, type their email address into the field in ORG SETTINGS and click INVITE.

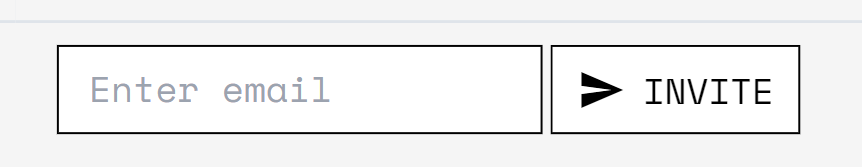

Figure: The user invitation email address field.
Screenshot of the user email address invitation field on the Organization settings page.

Deleting an organization

From the ORG SETTINGS page, you can delete any organization that has no locations. If the organization to delete contains any locations, you must delete them before you can delete the organization.

Managing locations and sub-locations

Adding locations

When you create a new organization, Viam automatically creates a new location for you. You can create additional locations by typing a new location name in the New Location field found in the left side navigation bar and clicking ADD.

Click a location’s name to display the list of robots associated with that location.

Deleting locations

You can delete a location that is empty of robots by clicking the trash can icon next to the location name at the top of the page for that location. The icon will not appear if there are any robots in the location.

Sharing a location

The Viam app allows you to share a location with any organization of which you are a member, as well as with the Viam Support Team.

Sharing a location with a different organization

If you are a member of more than one organization, the Viam app lists those organizations in the Add Organization drop-down:

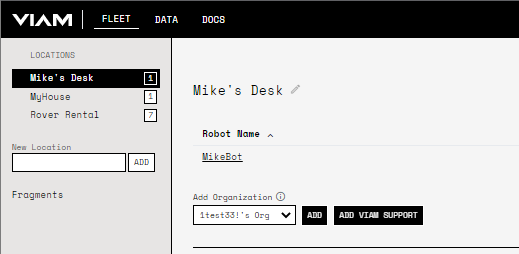

Figure: The Add Organization drop-down displaying an organization where the user is also a member.
The Add Organization drop-down displaying an organization where the user is also a member.

You can share your location with any listed organization by selecting it from the Add Organization drop-down and then clicking, Add. The Viam app lists the newly added organization:

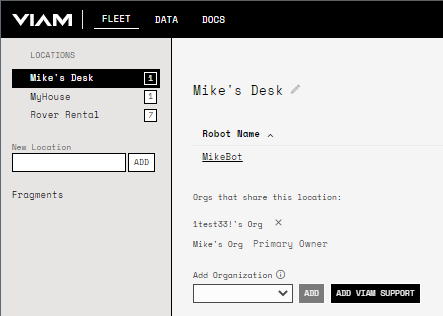

Figure: The Viam app displays newly added orgs under the orgs that share this location list.
After adding another org, the Viam app lists it under the orgs that share this location list.

Share a location with Viam Support

You must share your location with the Viam Support team when requesting support. To do so, navigate to the proper location and click, ADD VIAM SUPPORT. The button toggles to REMOVE VIAM SUPPORT; Click to remove Viam Support from your location.

Removing an organization from a shared location

You can remove any organization except the parent organization and Viam Support from the shared list by simply clicking the “X” to the right of its listing.

Sub-locations

To create a sub-location:

  1. Create a location and add at least one robot to it.
  2. From the bottom of the soon-to-be-sub-location’s page, use the New Parent Location drop-down to choose a parent location.
  3. Click CHANGE after selecting the new parent location.

You can continue nesting sub-locations in this way. To move a sub-location to the first level of locations, select Root from the New Parent Location drop-down and then click CHANGE.

Managing robots

In the navigation bar on the left, navigate to the location (or sub-location) where you want to create a robot.

Adding a new robot

When you click on a location that does not contain any robots, you’ll be prompted to create a robot by typing in the New Robot field and clicking ADD ROBOT.

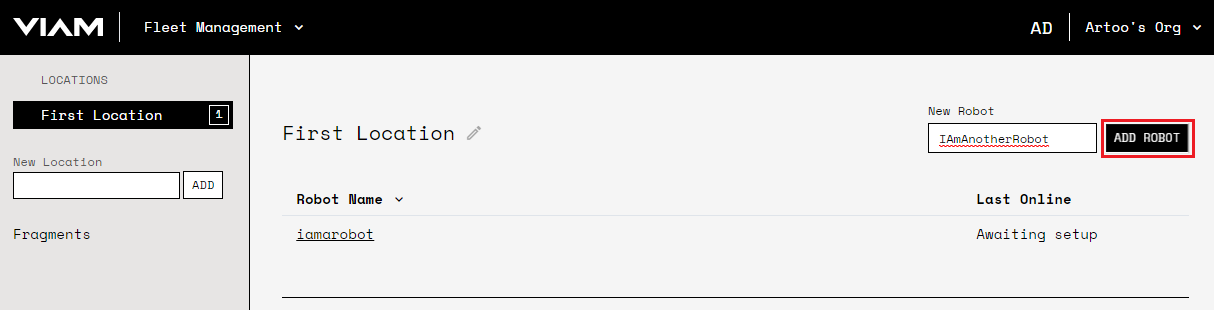

Figure: The New Robot field populated with a user-chosen name.
Screenshot of the 'First Location' page on the Viam app with a new robot name in the New Robot field and the ADD ROBOT button next to the field highlighted.

Deleting a robot

You can delete a robot by checking the Sure? box in the lower left of the robot page and clicking DELETE ROBOT.

Figure: DELETE ROBOT button and confirmation checkbox.
Screenshot of the DELETE ROBOT button and the confirmation checkbox (Sure?) next to it.

Click the name of a robot to go to that robot’s page, where you’ll find a variety of tools for working with your robot.

Navigating the robot page

The banner at the top of the robot page displays the robot’s location, name, and a drop down list of all parts of that robot. The first part you create will be the main part but you can create additional parts in the drop down.

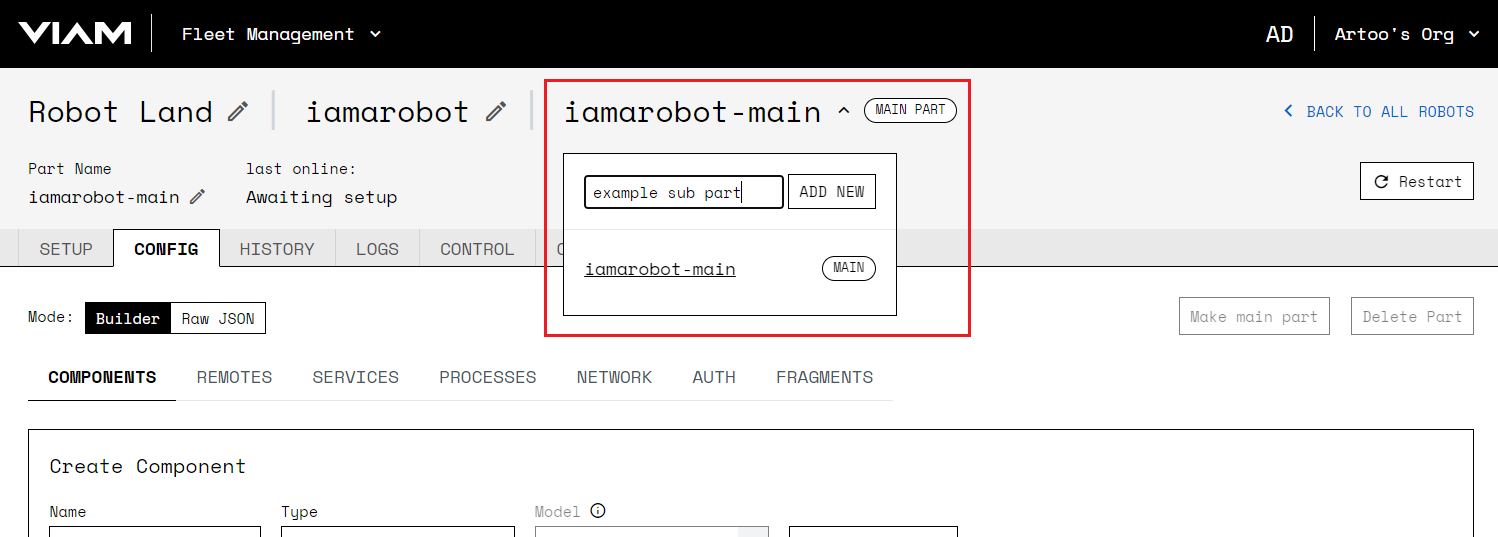

Figure: Example Robot Page with the Parts drop-down open (boxed in red).
Screenshot of the robot page for an example robot. The parts drop down is open.

To delete a part or make it the main part, use the buttons in the top right of the CONFIG tab.

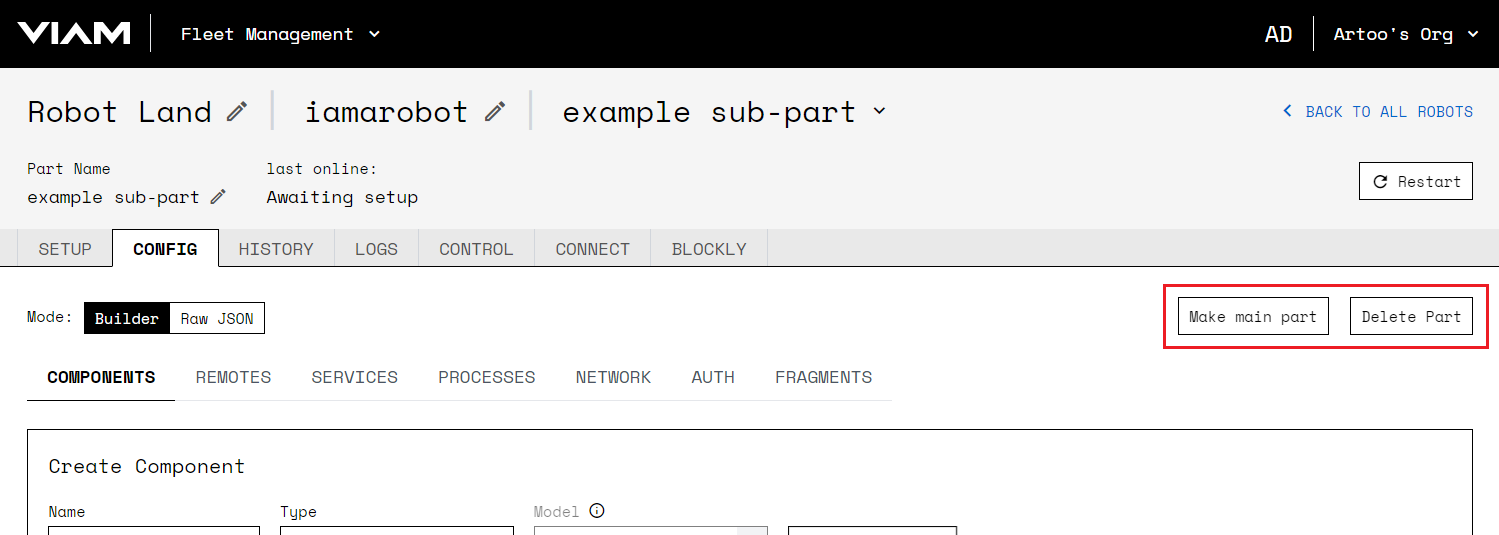

Figure: Screenshot of the CONFIG tab of a robot's page highlighting the Make main part and Delete Part buttons (boxed in red).
Screenshot of the CONFIG tab of a robot's page noting the location of the Make main part and Delete Part buttons.

If you’ve connected your robot to a machine running viam-server (instructions below), the banner also displays when the robot was last online, which version of viam-server it is running, the host name, IP address(es), and its operating system.

The following tabs are found on the robot page:

Setup

The SETUP tab contains information for starting an instance of viam-server on your robot’s computer. Be sure to select the correct Mode and Architecture for your system in the upper left of the tab.

Config

Here you can start adding robot components, services, and remotes.

Toggle between Builder (default) or Raw JSON using the Mode selector in the upper left. Builder provides a more graphical UI with added features such as a built-in webcam path discovery service. Raw JSON mode can be useful for users who are familiar with writing JSON, and for seeing and editing everything at once.

Within the CONFIG tab (in builder mode) are separate sub-tabs for components, services, remotes, processes, network, authentication, and fragments, so be sure to configure these in their respective tabs. In raw JSON mode, all of these resources are displayed in a single text field.

Details on configuring specific hardware components and services can be found in these topics:

Logs

The LOGS tab displays debug and other logging information from your robot.

History

The HISTORY tab shows a timestamped diff view of your robot’s configuration changes.

Code Sample

The CODE SAMPLE tab contains boilerplate code snippets you can copy and paste into your SDK code to connect to your robot. There is also a JSON stub you can copy if you wish to use this robot as a remote of another robot.

Control

The CONTROL tab allows you to control your robot using an interface for each component of your robot. This is done via WebRTC. For example, if you have configured a base with wheels, you can control your robot’s movement with an arrow pad and fields to change base’s speed. If you have configured a camera component, a window in the Control tab displays the camera output.

Blockly

This tab gives you the option of working on customizing your robot’s functionality by using Viam’s block-based coding editor which implements Blockly and Python.
