How to Run SLAM on your Robot

Instructions to run SLAM with either a webcam or provided example data.
Tags:

Introduction

SLAM allows your robot to create a map of its surroundings, as well as find its location within that map.

This tutorial shows you how to run ORB-SLAM3 on your robot. You have two choices:

  • Run SLAM in online mode with a webcam. The webcam can be installed on a robot, or just be held by hand.
  • Run SLAM in offline mode either with collected data or our provided example data.

Requirements

Setup

If you haven’t already, please set up the Raspberry Pi on the Viam app per these instructions.

Next, we’ll install the ORB-SLAM3 binary.

Installing the ORB-SLAM3 binary

First, ssh into your Pi and then check the architecture of your system by running lscpu. Depending on the output download and install one of the following ORB-SLAM3 binaries:

  • AArch64 (ARM64) (e.g., on an RPI):

    sudo curl -o /usr/local/bin/orb_grpc_server http://packages.viam.com/apps/slam-servers/orb_grpc_server-stable-aarch64.AppImage

  • x86_64:

    sudo curl -o /usr/local/bin/orb_grpc_server http://packages.viam.com/apps/slam-servers/orb_grpc_server-stable-x86_64.AppImage

Make the file executable by running:

sudo chmod a+rx /usr/local/bin/orb_grpc_server

Running ORB-SLAM3 with a webcam

The following setup allows you to run ORB-SLAM3 in live mode using a webcam.

Configuration using Viam

The configuration of SLAM happens in two steps:

  1. Add a webcam and calibrate it.
  2. Add SLAM to the existing configuration.

Add a webcam and calibrate it

Follow these tutorials to connect and calibrate your webcam:

Add SLAM to the configuration

Find out your home directory by ssh-ing into your Pi, and typing pwd. This is an example of what you might see:

YOUR_USERNAME@YOUR_RPI_NAME:~ $ pwd
/home/YOUR_USERNAME

Go to your robot’s page on the Viam app. On the CONFIG tab, click the SERVICES sub-tab.

Create a service with type slam, a name (we called ours run-slam) and a model orbslamv3.

Paste the following into the Attributes field of the SLAM service:

{
  "data_dir": "/home/YOUR_USERNAME/data",
  "map_rate_sec": 60,
  "data_rate_ms": 200,
  "sensors": [
    "color"
  ],
  "config_params": {
    "debug": "false",
    "orb_scale_factor": "1.2",
    "mode": "mono",
    "orb_n_features": "1250",
    "orb_n_ini_th_fast": "20",
    "orb_n_levels": "8",
    "orb_n_min_th_fast": "7"
  }
}

Click here if you prefer to use raw JSON mode

Change the "data_dir": "/home/YOUR_USERNAME/data" directory to your home directory that you found out by typing pwd, followed by /data. Save the config.

In our case, YOUR_USERNAME is slam-bot, and our complete configuration together with the previously obtained camera configuration now looks like this:

{
  "components": [
    {
      "name": "color",
      "type": "camera",
      "model": "webcam",
      "attributes": {
        "intrinsic_parameters": {
          "fy": 940.2928257873841,
          "height_px": 480,
          "ppx": 320.6075282958033,
          "ppy": 239.14408757087756,
          "width_px": 640,
          "fx": 939.2693584627577
        },
        "distortion_parameters": {
          "rk2": 0.8002516496932317,
          "rk3": -5.408034254951954,
          "tp1": -0.000008996658362365533,
          "tp2": -0.002828504714921335,
          "rk1": 0.046535971648456166
        },
        "stream": "",
        "debug": false,
        "format": "",
        "video_path": "video0",
        "width_px": 0,
        "height_px": 0
      },
      "depends_on": []
    }
  ],
  "services": [
    {
      "type": "slam",
      "model": "orbslamv3",
      "attributes": {
        "data_dir": "/home/slam-bot/data",
        "map_rate_sec": 60,
        "data_rate_ms": 200,
        "sensors": [
          "color"
        ],
        "config_params": {
          "debug": "false",
          "orb_scale_factor": "1.2",
          "mode": "mono",
          "orb_n_features": "1250",
          "orb_n_ini_th_fast": "20",
          "orb_n_levels": "8",
          "orb_n_min_th_fast": "7"
        }
      },
      "name": "run-slam"
    }
  ]
}

Head over to the CONTROL tab and choose the run-slam drop-down menu. Change the Refresh frequency to your desired frequency, move the webcam around slowly, and watch a map come to life!

Running ORB-SLAM3 with a dataset

The following setup allows you to run ORB-SLAM3 in offline mode using either one of your previously saved datasets, or our dataset that you can download and play with.

The dataset

In offline mode, SLAM will use an existing dataset to create a map.

You might have an RGB dataset already saved in your data_dir/data directory from running SLAM in live mode. If not, don’t worry! You can download our dataset: Viam Office Hallway 1 - RGBD.

If you downloaded our dataset, and assuming that the zip file is now located in your ~/Downloads folder, you can copy/paste it into your Pi by running the following command:

scp ~/Downloads/data.zip YOUR_USERNAME@YOUR_RPI_NAME.local:~/.

Be sure to replace YOUR_USERNAME and YOUR_RPI_NAME with your username and Pi name. The dataset is large, so it might take a while for it to copy over to your Pi.

Next, ssh into your Pi, and run:

unzip data.zip

Now you’re ready to configure SLAM to use your dataset and to run in offline mode.

Configuration using Viam

Next, we will add SLAM to the configuration.

First, ssh into your Pi and find out your home directory by typing pwd This is an example of what you might see:

YOUR_USERNAME@YOUR_RPI_NAME:~ $ pwd
/home/YOUR_USERNAME

In your web browser, navigate to the robot you set up on the Viam app (https://app.viam.com). In the CONFIG tab, click on “Raw JSON”, and copy/paste the following configuration:

{
  "services": [
    {
      "type": "slam",
      "model": "orbslamv3",
      "attributes": {
        "data_rate_ms": 200,
        "sensors": [],
        "config_params": {
          "debug": "false",
          "orb_scale_factor": "1.2",
          "mode": "mono",
          "orb_n_features": "1250",
          "orb_n_ini_th_fast": "20",
          "orb_n_levels": "8",
          "orb_n_min_th_fast": "7"
        },
        "data_dir": "/home/YOUR_USERNAME/data",
        "map_rate_sec": 60
      },
      "name": "run-offline-slam"
    }
  ]
}

Change the "data_dir": "/home/YOUR_USERNAME/data" directory to your home directory that you found out by typing pwd, followed by /data. Save the config.

Head over to the CONTROL tab and choose the “run-slam” drop-down menu. Change the “Refresh frequency” to your desired frequency and watch a map come to life using the data in your dataset!

Troubleshooting

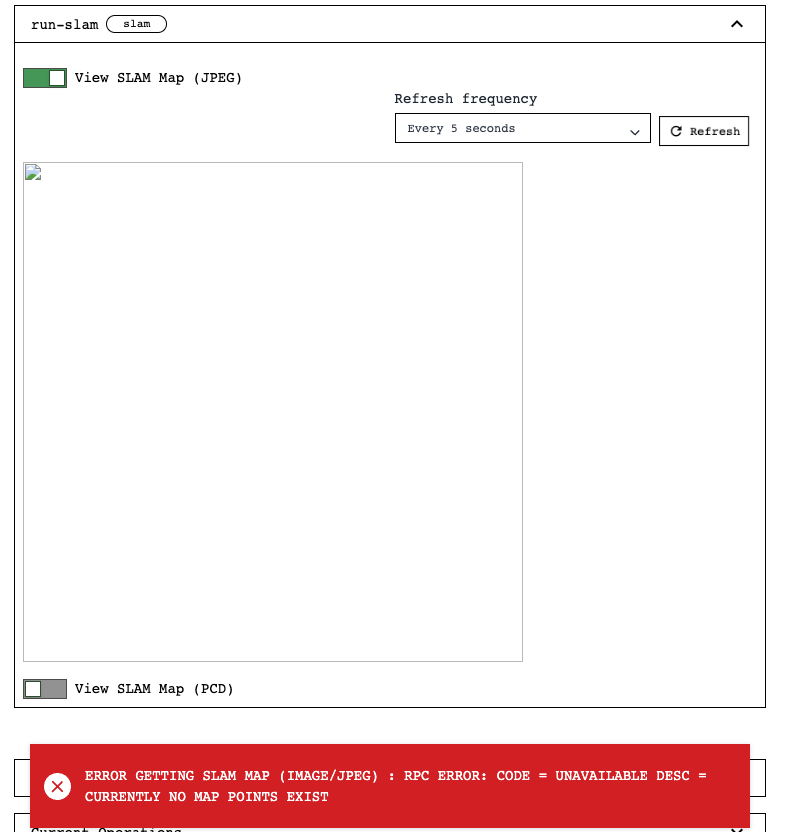

Issue: “CURRENTLY NO MAP POINTS EXIST”

This issue has a couple of potential causes.



First, it might take a few minutes for ORB-SLAM3 to create an initial map after starting up. Both in online and offline mode this might mean that you have to wait a little while before you can see a map on the UI.

Second, map generation depends on the quality of the dataset. For consecutive images, the camera’s focus should not be moved too far from that of the previous image, and images should contain enough details that can be detected by ORB-SLAM3. Images from a white wall for example will not successfully generate a map. Try to point the camera into areas that contain a lot of information, such as objects, window frames, and similar.

Furthermore, in online mode, it helps to move the camera around slowly, such that consecutive images contain similar items that can be matched to each other.

In offline mode, it can be difficult to determine the quality of the dataset. If no map can be generated using the offline dataset, a new dataset should be generated.

Additional Troubleshooting

You can find additional assistance in the Troubleshooting section.

You can also ask questions on the Viam Community Slack and we will be happy to help.
